CET-DM11 Visual Deflection Meter for Bridge Health Monitoring System

Visual Deflection Meter

CET-DM11

This system utilizes high-definition camera lenses to capture infrared images from multiple targets in the target area. Employing ultra-sensitive optical flow algorithms, it performs real-time calculations of target dynamic displacements, achieving high-frequency and high-precision bridge deflection tracking.

➢ High Precision Implements ultra-sensitive optical flow methods and high-definition cameras to achieve displacement tracking precision of 0.1mm.

➢ High Frequency Utilizes high-frequency cameras, enabling dynamic deflection data acquisition at rates up to 50Hz.

➢ Wide Application Range Equipped with various focal length lenses, capable of tracking deflection of targets at distances from 5 to 300 meters.

➢ Passive Targets Employs passive reflective targets, resulting in low system failure rates and power consumption. Capable of simultaneously capturing images from 20 targets.

➢ Miniaturized Convenient Design Features compact design compatible with both mains power and solar power supply for easy installation and deployment.

Visual Deflection Meter

0.5m bridge health monitoring system

400m Bridge Health Monitoring

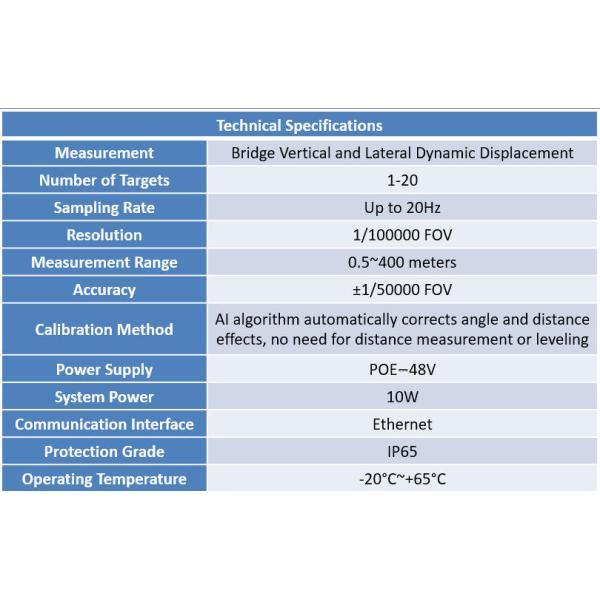

CET-DM11 Visual Deflection Meter for Bridge Health Monitoring System Images
